Unlock the potential of your ESP32 by interfacing it with a DHT11 temperature and humidity sensor. This guide provides a straightforward approach to connecting these components, enabling you to gather real-time environmental data for your projects. In this article, you'll learn the essential wiring steps and the code required to read temperature and humidity values from the DHT11 sensor using your ESP32 WROOM 36-pin board.

Components and Tools Required

To get started, you'll need a few essential components. These are readily available and form the basis of many electronics projects.

  • ESP32 WROOM 36-pin Development Board: The heart of our project, providing Wi-Fi and Bluetooth capabilities.
  • DHT11 Temperature and Humidity Sensor: The sensor that will measure the ambient temperature and humidity. It typically has 3 or 4 pins.
  • Breadboard: A convenient tool for prototyping electronic circuits without soldering.
  • Jumper Wires: Used to connect the components on the breadboard.
  • Micro-USB Cable: To power and program your ESP32 board.

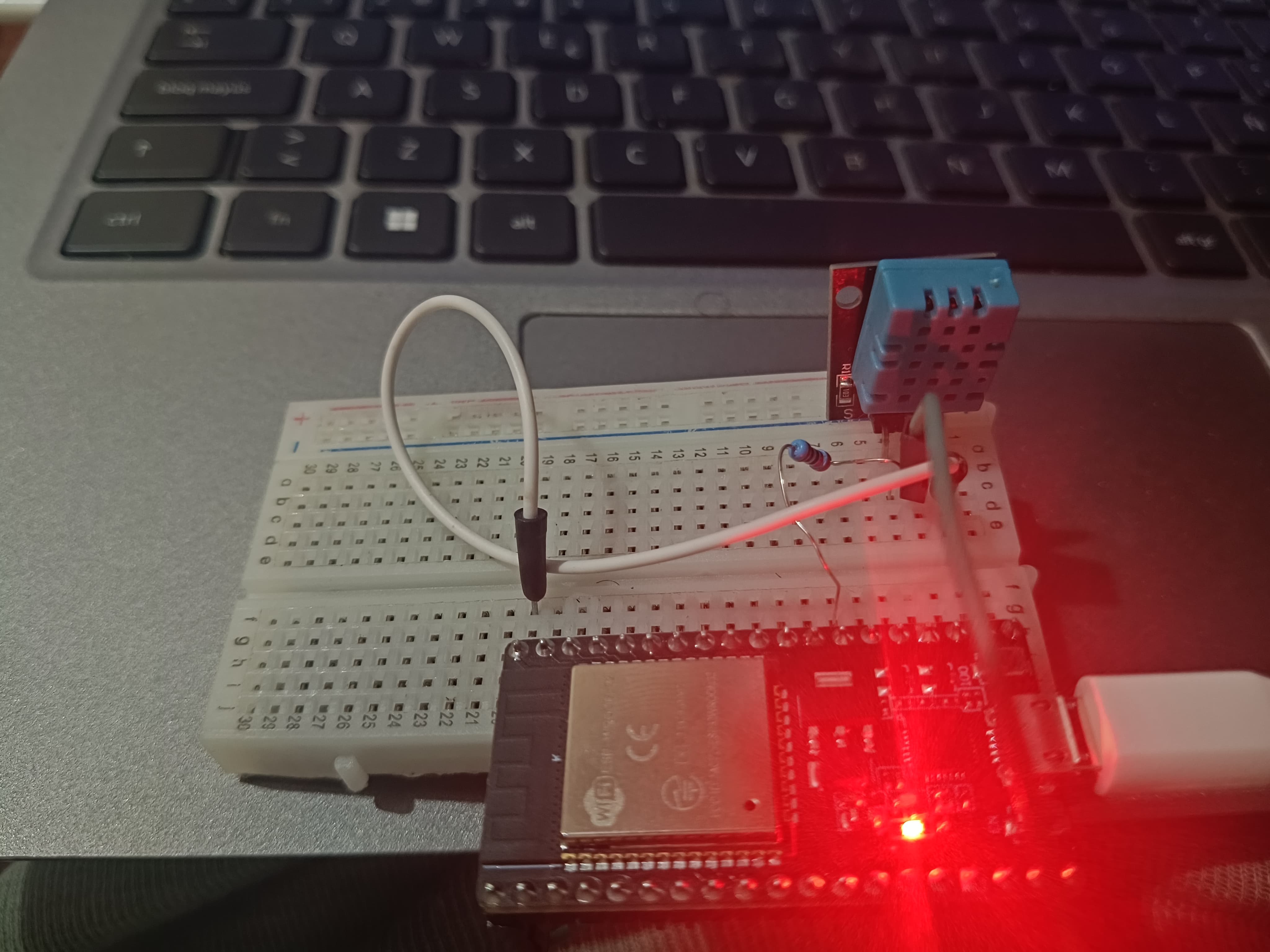

Wiring the DHT11 Sensor to the ESP32

Connecting the DHT11 sensor to your ESP32 is a simple process. The DHT11 sensor has three essential pins that need to be connected: VCC (Power), GND (Ground), and DATA.

  1. Power Connection: Connect the VCC pin of the DHT11 sensor to the 3.3V pin on your ESP32 board. The DHT11 can operate between 3.3V and 5.5V, and using the 3.3V from the ESP32 is a safe and convenient option.
  2. Ground Connection: Connect the GND pin of the DHT11 sensor to a GND (Ground) pin on your ESP32 board.
  3. Data Connection: Connect the DATA pin of the DHT11 sensor to a suitable GPIO (General Purpose Input/Output) pin on your ESP32. For this tutorial, we will use GPIO 4. It's important to choose a GPIO pin that is safe for general use.

Important Note: Some DHT11 modules come with a built-in pull-up resistor on the data line. If you are using a bare 4-pin DHT11 sensor, you may need to add a 10kΩ pull-up resistor between the VCC and DATA pins.

Setting Up the Arduino IDE and Installing Libraries

With the hardware wired up, the next step is to prepare your programming environment. We'll be using the Arduino IDE to program the ESP32.

  1. Install the ESP32 Board in Arduino IDE: If you haven't already, you'll need to add the ESP32 board manager to your Arduino IDE. You can do this by going to File > Preferences and adding the following URL to the "Additional Board Manager URLs" field: https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json. Then, open the Boards Manager (Tools > Board > Boards Manager...), search for "esp32", and install the package by Espressif Systems.
  2. Install1 the DHT Sensor Library: To easily read data from the DHT11 sensor, we'll use a pre-existing library. In the Arduino IDE, go to Sketch > Include Library > Manage Libraries.... In the Library Manager, search for "DHT sensor library" by Adafruit and install it. This library simplifies the code needed to communicate with the sensor.

Code for Reading Temperature and Humidity

Here is the Arduino sketch to read the temperature and humidity from the DHT11 sensor and display it in the Serial Monitor.

C++



// Include the necessary libraries
#include "DHT.h"

// Define the GPIO pin connected to the DHT11 data pin
#define DHTPIN 4

// Define the type of DHT sensor
#define DHTTYPE DHT11

// Initialize the DHT sensor object
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  // Start the serial communication
  Serial.begin(115200);
  Serial.println("DHT11 Test!");

  // Initialize the DHT sensor
  dht.begin();
}

void loop() {
  // Wait a few seconds between measurements.
  delay(2000);

  // Read humidity
  float h = dht.readHumidity();
  // Read temperature as Celsius (the default)
  float t = dht.readTemperature();
  // Read temperature as Fahrenheit (isFahrenheit = true)
  float f = dht.readTemperature(true);

  // Check if any reads failed and exit early (to try again).
  if (isnan(h) || isnan(t) || isnan(f)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Compute heat index in Fahrenheit (the default)
  float hif = dht.computeHeatIndex(f, h);
  // Compute heat index in Celsius (isFahrenheit = false)
  float hic = dht.computeHeatIndex(t, h, false);

  // Print the results to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(h);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(t);
  Serial.print(" *C ");
  Serial.print(f);
  Serial.print(" *F\t");
  Serial.print("Heat index: ");
  Serial.print(hic);
  Serial.print(" *C ");
  Serial.print(hif);
  Serial.println(" *F");
}

Code Explanation

  • #include "DHT.h": This2 line includes the DHT sensor library we installed.
  • #define DHTPIN 4:3 This defines the GPIO pin on the ESP32 that the DHT11 data pin is connected to.
  • #define DHTTYPE DHT11: This specifies the type of DHT sensor we are using.
  • DHT dht(DHTPIN, DHTTYPE);: This creates a DHT object that we can use to interact with the sensor.
  • Serial.begin(115200);: This starts the serial communication at a baud rate of 115200, allowing the ESP32 to send data to your computer.
  • dht.begin();: This initializes the DHT11 sensor.
  • dht.readHumidity() and dht.readTemperature(): These functions are called to read the humidity and temperature data from the sensor.
  • Serial.print() and Serial.println(): These are used to display the readings in the Arduino IDE's Serial Monitor.

After uploading the code, open the Serial Monitor (Tools > Serial Monitor) and set the baud rate to 115200 to see the temperature and humidity readings.

Troubleshooting Common Issues

If you encounter problems, here are a few things to check:

  • Check Your Wiring: Ensure that the VCC, GND, and DATA pins are correctly connected. A loose connection can often be the culprit.
  • Power Source: The ESP32 can draw a significant amount of current, especially when Wi-Fi is active. If you are experiencing unstable readings, try using a more robust power source.
  • Correct GPIO Pin: Double-check that the DHTPIN defined in your code matches the GPIO pin you've connected the DHT11's data line to.
  • Library Installation: Make sure the Adafruit DHT sensor library is correctly installed in your Arduino IDE.

Conclusion

You have successfully connected a DHT11 temperature and humidity sensor to your ESP32 WROOM 36-pin board. With this setup, you can now integrate real-time environmental data into a wide range of IoT projects, from a simple weather station to more complex climate control systems. By following the steps outlined in this guide, you have gained a fundamental skill in interfacing sensors with microcontrollers.
